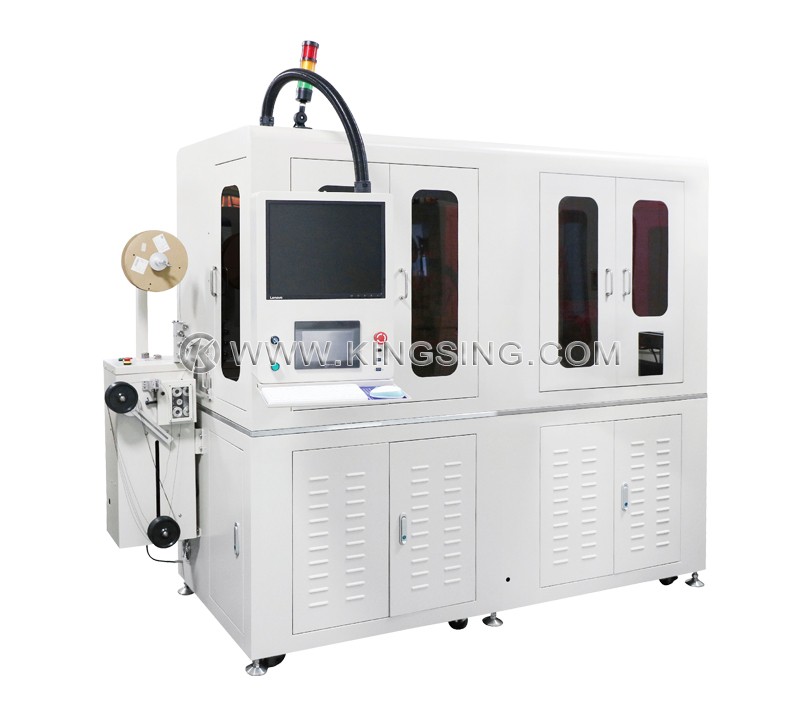

Automatic Coaxial Cable Crimping and Soldering Machine (double tin furnace type)

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry

This model is designed for some customers who have high requirements for soldering. It uses double tin furnaces to dip tin twice. It has obvious quality for some wires with loose braided layers or copper foil, which are easy to bulk up when dipped in tin. Improve the effect!

Cutting capacity: 35mm-800mm (35mm product dip tin end stripping size does not exceed 5mm)


Processing diameter: 0.81-1.37 specifications


Cutting depth setting unit: 0.01mm


Working pressure: not less than 0.5Mpa


Machining accuracy: Tolerance of stripping at both ends ±0.1mm Total length tolerance ±0.5mm


Working voltage: AC220V±10V


Dimensions: 2400*1400*2200mm


Power: about 3.3KW


Weight: about 1200kg


Production efficiency: 900-1200PCS/H (depending on the stripping length)
