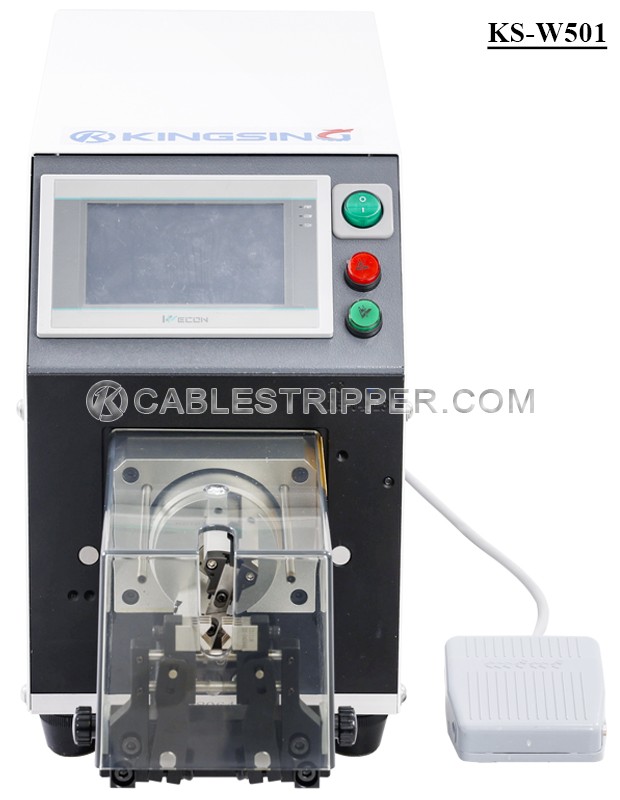

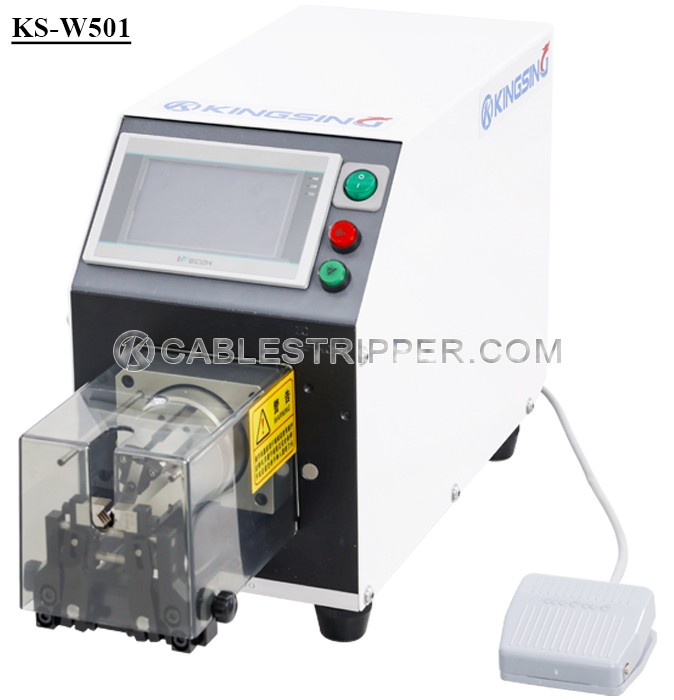

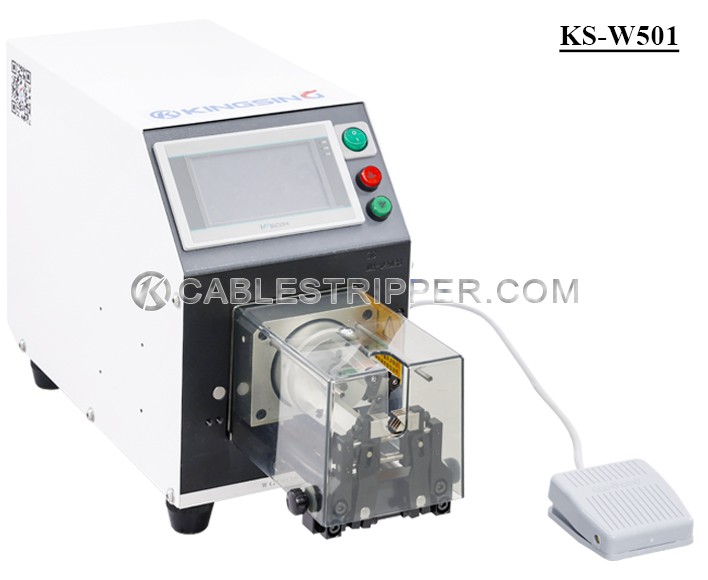

Automatic RF Coaxial Cable Stripper

1、This series is a semi-automatic coaxial cable stripping machine, suitable for processing various flexible and semi-flexible coaxial cables, automotive cables, medical cables, etc. It uses 2 pieces of high-precision tungsten steel blades to rotate and strip the wire, which can cut the stripping position 360 degrees, the stripping is smooth, the stripping length is accurate, and the cutting accuracy can reach 0.01mm, without damaging the inner layer. This series of wire stripping machines also has the function of rotary stripping, that is, when stripping the wires, they are stripped while rotating, and the copper wires can be twisted together for multi-strand copper wires.

2、Color touch screen operation interface, parameter setting is intuitive and easy to understand. It can be stripped in up to 9 layers, and the cutting depth and stripping length of each layer can be freely set in the program. For example, when stripping a coaxial cable, the outer layer, braided layer, and core wire can be stripped to different lengths. Up to 99 groups of programs can be saved, and the processing parameters of different wire materials can be saved in different program numbers. When switching wire materials, the corresponding parameters can be called out with one key without mechanical adjustment.
