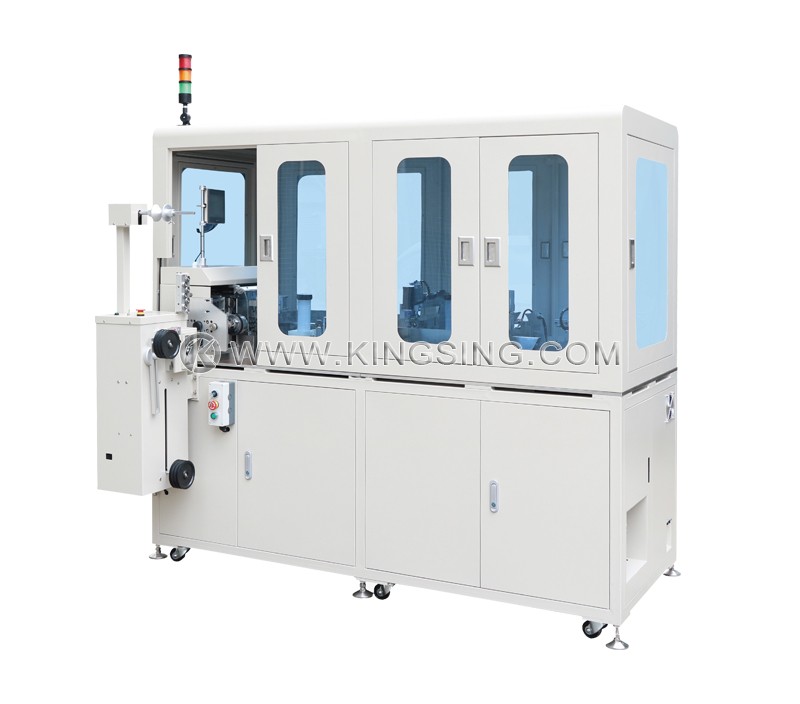

Coaxial Cable Cutting Stripping and Tin Dipping Machine

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry

Designed for automatic soldering after coaxial wire cutting and stripping, it liberates manpower in special positions, the equipment runs stably and the structure is more optimized, and the operation and maintenance are easier!

Cutting capacity: 45mm--600mm


Processing diameter: 0.81-1.78mm


Cutting depth setting unit: 0.01mm


Equipment utilization rate: ≥95%


Working pressure: not less than 0.5Mpa


Processing accuracy: Tolerance of stripping at both ends ±0.1mm Total length tolerance ±0.25mm


Dimensions: 2000*1300*1500mm


Power: about 2KW


Weight: about 800KG


Production efficiency: 900-1100PCS/H (depending on the stripping length)
