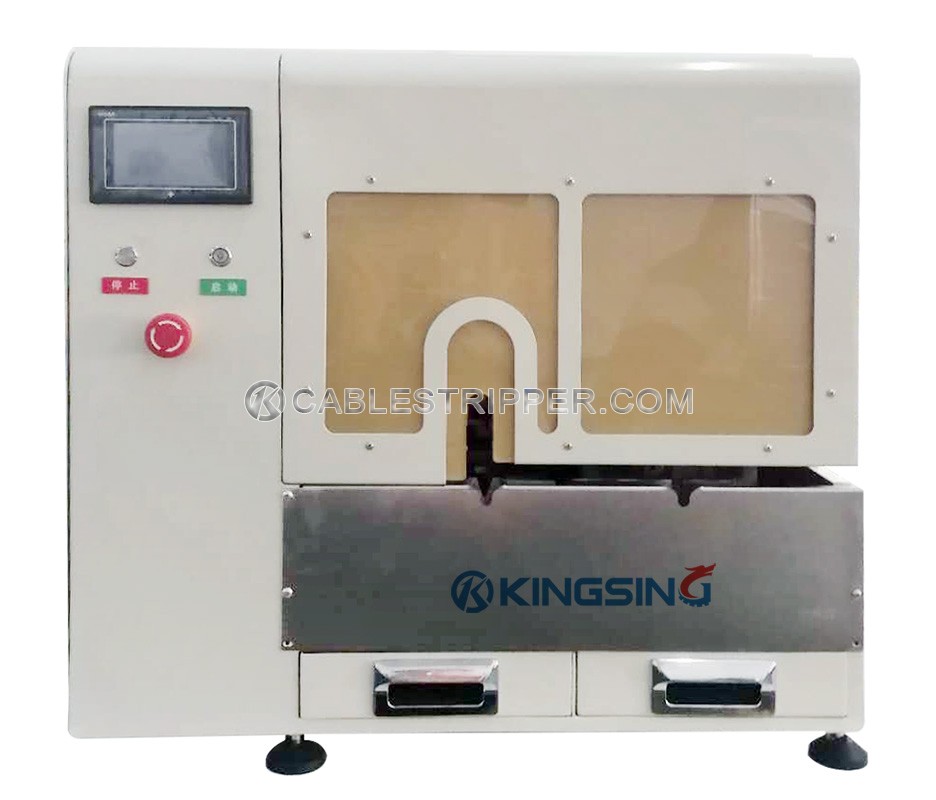

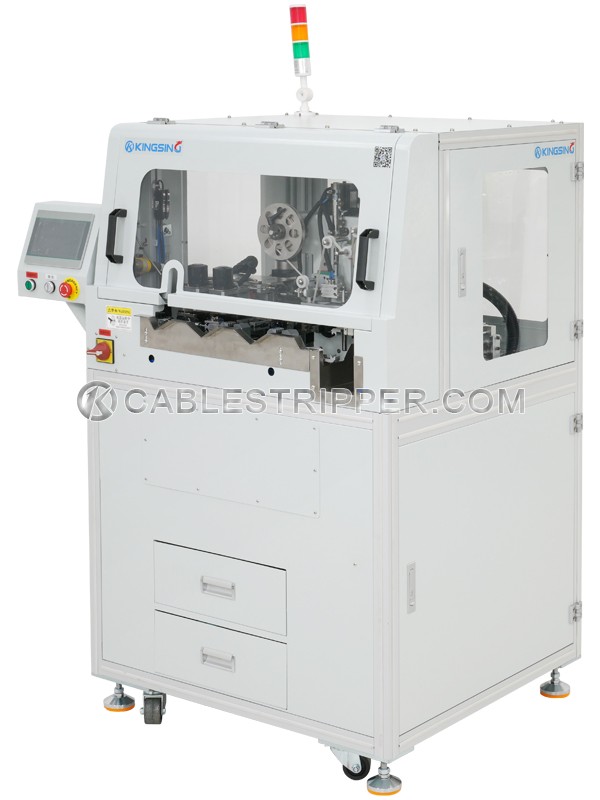

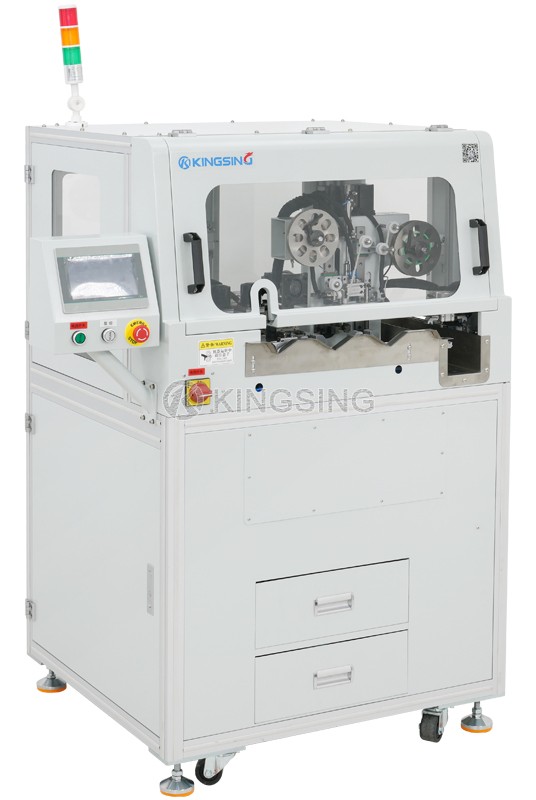

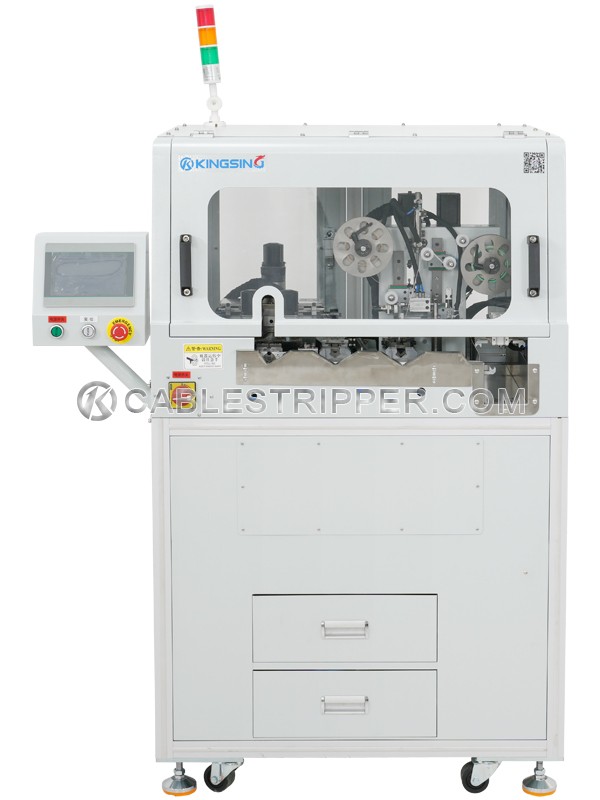

Shield Combing and Copper Foil Wrapping Machine

  • Model：KS-S28CF
  • Net. Weight：
  • Dimension：510×700×650mm
Online Inquiry

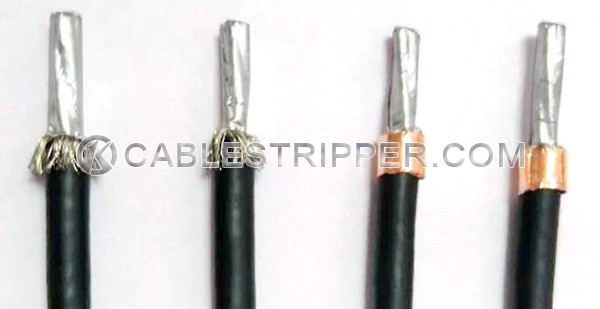

This is an automatic shielding brushing and copper foil wrapping machine. The outer jacket of the wire needs to be stripped in advance. The operator only needs to put the wire end into the fixture, then it can automatically brush shielding, cut shielding, turning over shielding and wrap copper foil.

This machine needs to be customized according to products and requirements, it's not a standard model.

KINGSING

Download: (1) (2)

Shield Left Length: 3~40mm

Available Wire Size: Φ2.5~8mm

Copper Foil Width: 3~10mm

Air Source: 0.5~0.7Mpa

Power Supply: 220V 50/60Hz

Dimension: 510×700×650mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
