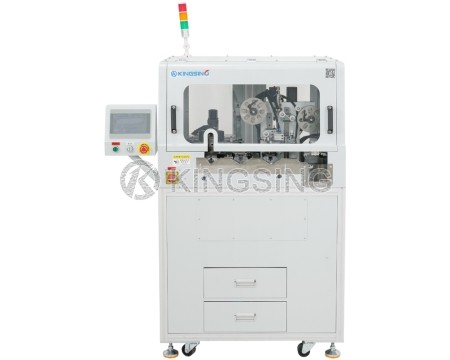

Cable Shield Brushing Twisting and Heat Shrink Tube Insertion

Model：KS-S005

Net. Weight：300kg

Dimension：2500×780×1300mm

This machine is specially designed for processing cables with braided shielding, such as USB data cable, 1185 DC cable, car connection cable, microphone cable, etc. It integrates multiple functions and can automatically complete the following actions: jacket stripping, shield brushing and twisting, heat shrink tubing insertion, aluminium foil mylar removing, core wire stripping twisting and tinning, core wire trimming, etc.

It's able to insert 2 shrinkable tubes, on on the twisted braided shield and another one on the cable, heating and shrinking can be finished automatically.

Download: (1) (2) (3)

Available Wire Size: Φ2~8mm (Can be customized)

Jacket Stripping Length: 10~60mm (Can be customized)

Capacity: 900~1200pcs/hour

Power Supply: 220V 50/60Hz

Net. Weight: 300kg

Dimension: 2500×780×1300mm

Model	KS-S005A	KS-S005B	KS-S005C
Jacket Stripping	√	√	√
Shield Brushing	√	√	√
Shield Twisting	√	√	√
Shield Insert Tube	√	√	√
Core Wire Stripping	√	√	×
Core Wire Twisting	√	√	×
Core Wire Tinning	×	√	×
Core Wire Trimming	optional	√	√
Cable Insert Tube	√	√	√
Mylar Removing	×	×	√
Heat Shrinking	√	√	√
